Infrastructure work — the real ones.

Diagrams, topology views, migration artifacts, and audit outputs from actual environments. Some are client deliverables (redacted where necessary); some are lab work that later became reusable templates.

838VMs · AUS prod cluster

92VMs · DR cluster

68UCS blades audited

36moOpenShift horizon

Active / Recent

OpenShift migration program.

Production and DR vCenter analysis (RVTools), UCS health audit across 68 blades, Jira-import CSV for modernization backlog, POC runbook targeting the C2-WebSphere-Cluster for Single Node OpenShift, OpenShift working session with Red Hat engineering. Findings surfaced expiring SSL certificates, multipath storage failures, dead boot LUNs, and a critically unhealthy UCS node — all of which shaped the migration wave plan.

Artifact

Infrastructure health reports

RVTools-derived reports covering both vCenter environments, host-level drill, storage paths, certificate expiries, boot-LUN status.

Artifact

Jira-import CSV

Structured backlog for the modernization program — every finding becomes a ticket with priority, workstream, and owner hints.

Artifact

POC runbook (SNO)

Single Node OpenShift POC on the C2-WebSphere-Cluster target — prerequisites, sequence, rollback posture.

Artifact

Migration wave plan

24–36 month horizon, workload-class banding, dependency sequencing.

Prior environments

Representative work, documented.

Datacenter / Virtualization

TX Datacenter & Virtual Environment

Core-stack, managed router, firewall, VoIP, HP Indigo systems, virtual infra — documented in a single reference.

Multi-Site Enterprise

TX / CA / LAX Site Architecture

Regional sites, datacenters, branch presence, cross-site workflow dependencies.

Healthcare

Harbor Health Multi-Clinic Footprint

Standardized site topology — clinics, call center, HQ, mobile units.

Hybrid / Migration

Support & Migration Reference

On-prem to virtual to cloud gateway, backup flows, migration-readiness mapping.

Workflow Automation

MFA Print & Onyx VPS Pipeline

Downloaders, RIP stations, forwarding, packing slips, Zund cut-queue integration.

Physical Security

Facility Access Control

Entry points, control-board hubs, readers, locking mechanisms for secure ops handoff.

Representative diagrams

Visualizing infrastructure stories

Selected diagrams from past engagements. Each illustrates how a real environment was structured and how services were connected across datacenters, clinics, and cloud providers. These visuals were originally delivered as client-ready artifacts and are reproduced here with proprietary details removed.

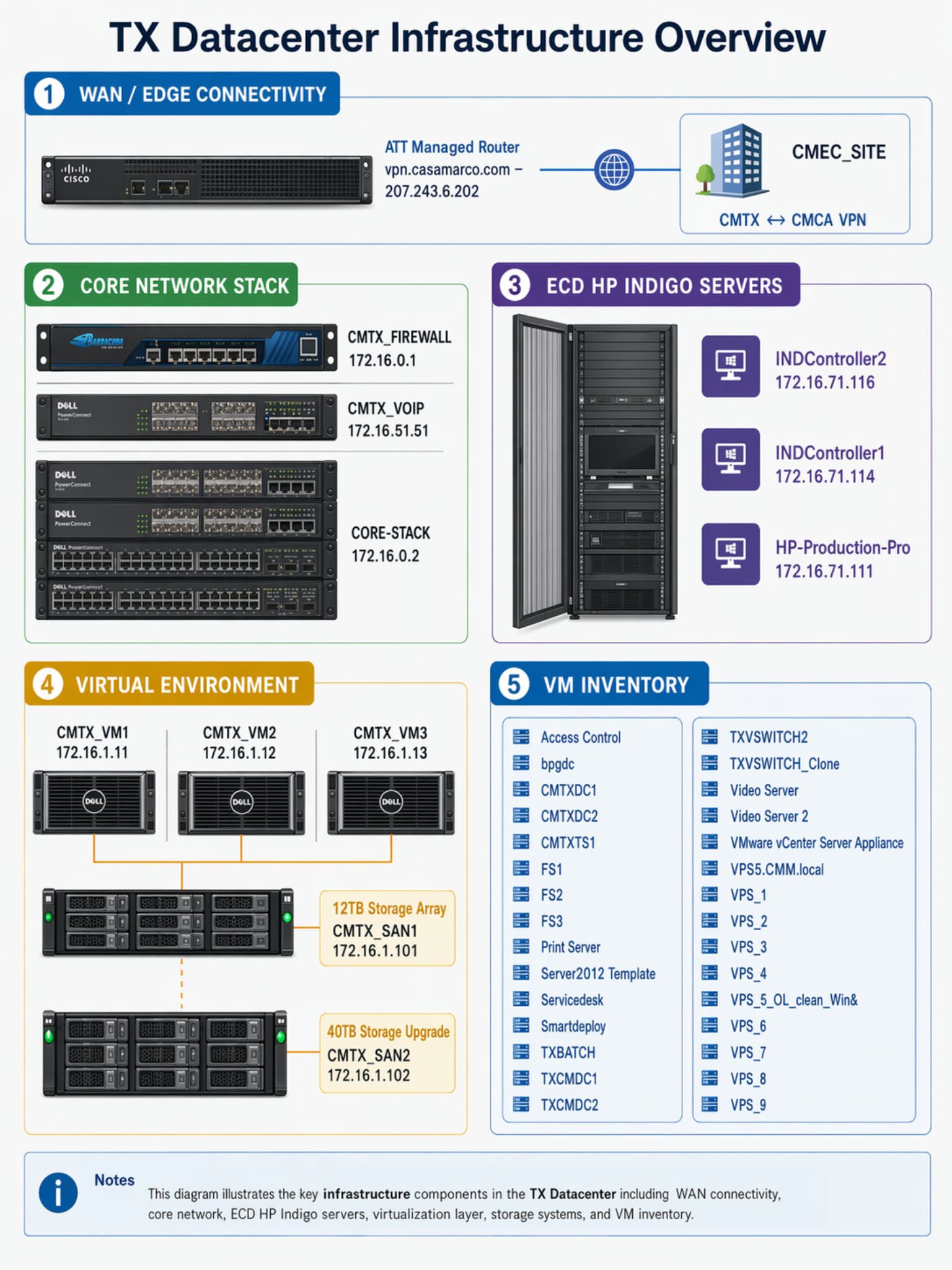

TX datacenter and virtual environment overview — TX datacenter & virtual environment — core network, VM inventory, voice and Indigo systems.

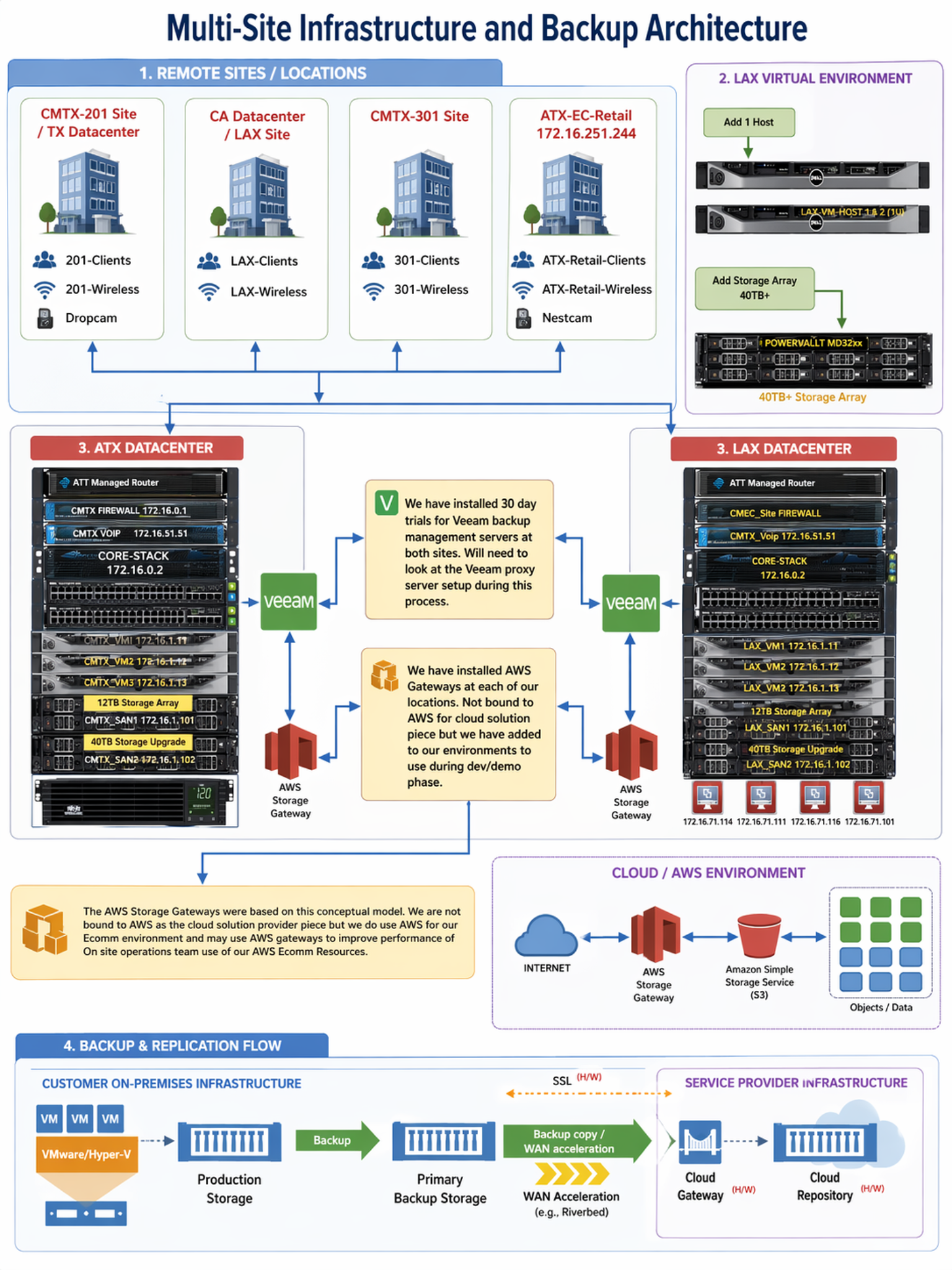

Multi-site infrastructure and backup architecture — Multi-site infrastructure & backup architecture — regional datacenters (TX/LAX), replication flows, and cloud tie‑ins.

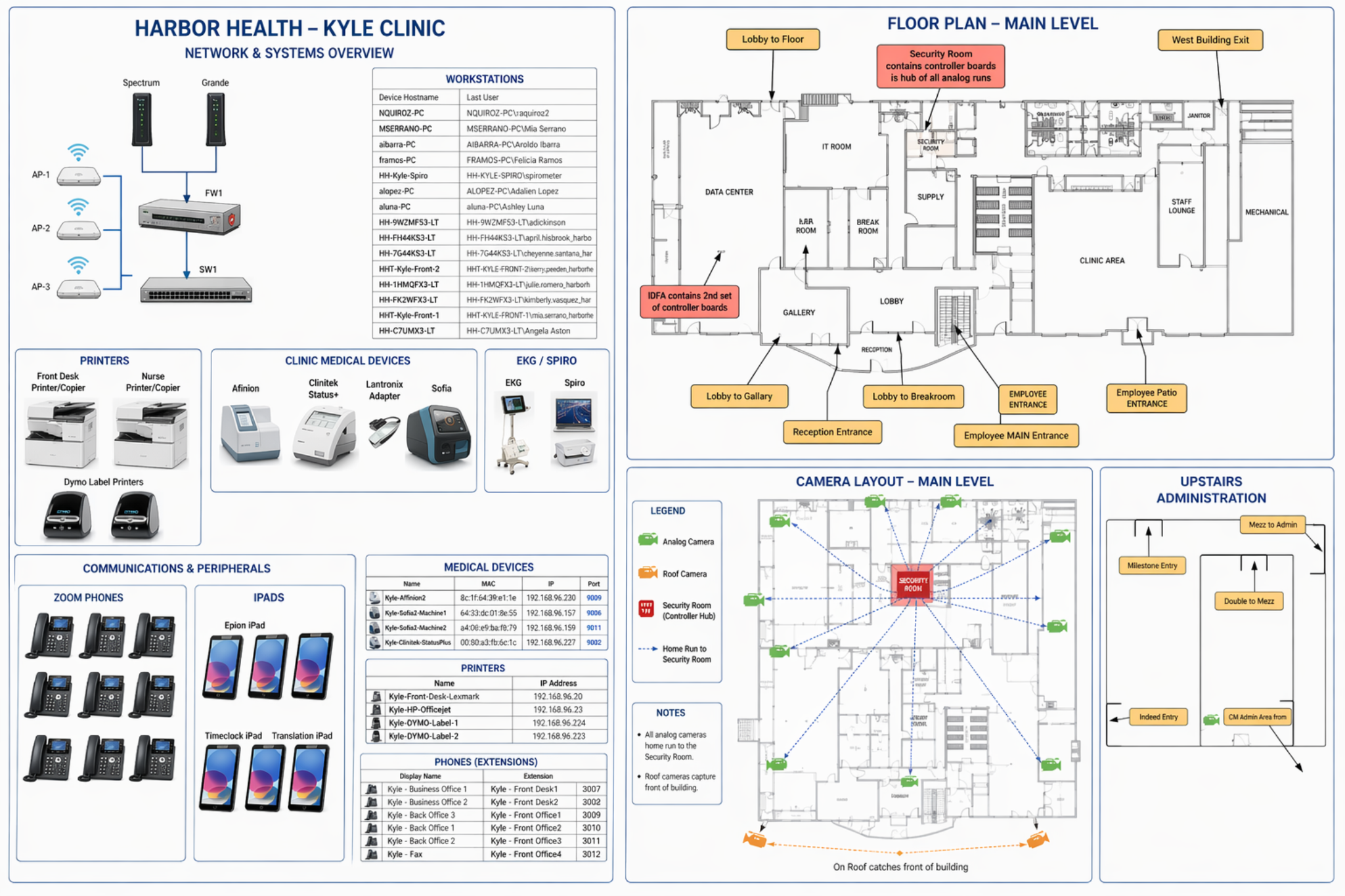

Harbor health clinic network and systems overview — Harbor Health network & systems overview — clinic devices, camera coverage, and core connectivity.

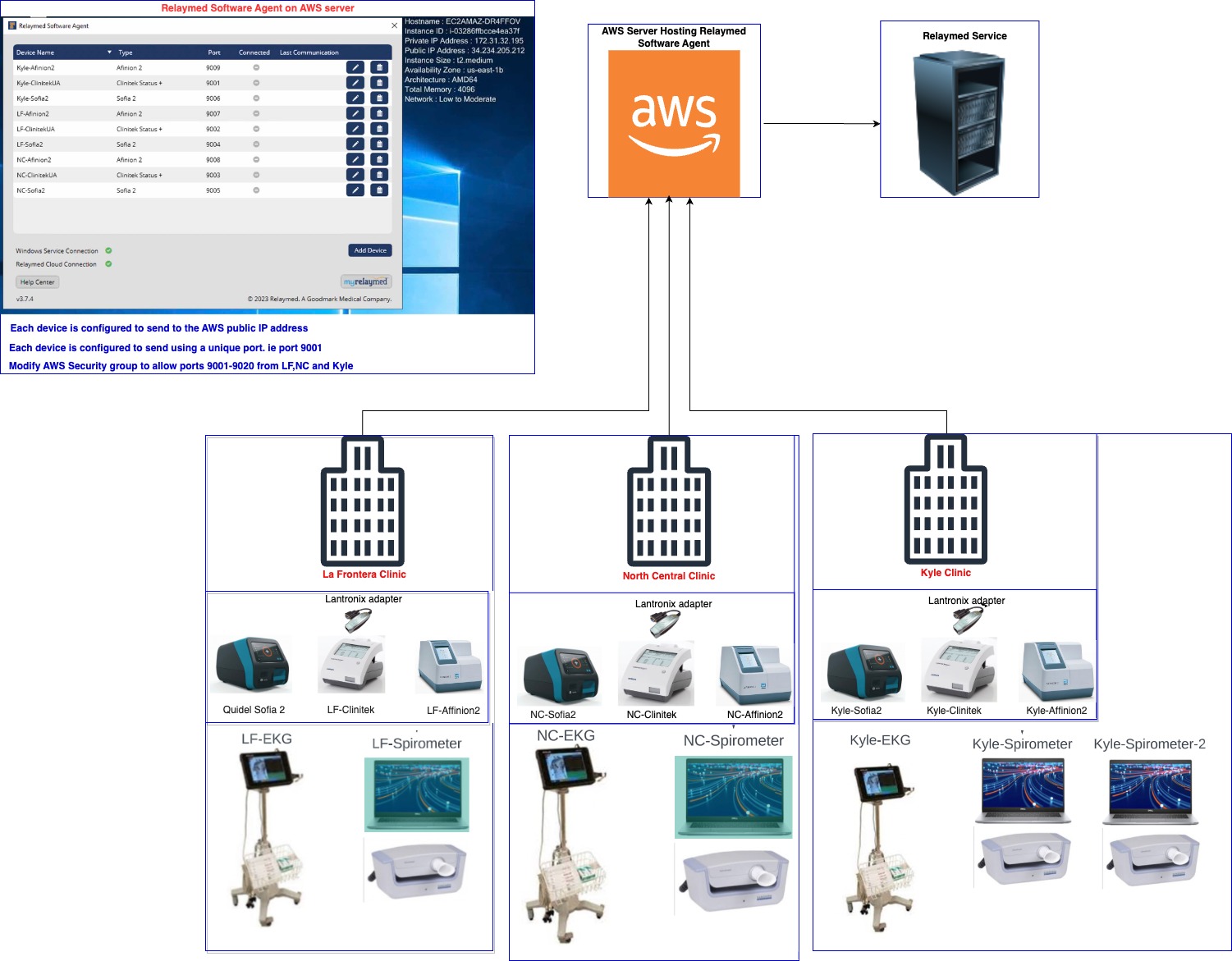

Medical device and clinic systems integrations — Medical device integrations — linking clinic sensors, gateways and cloud services for patient care.

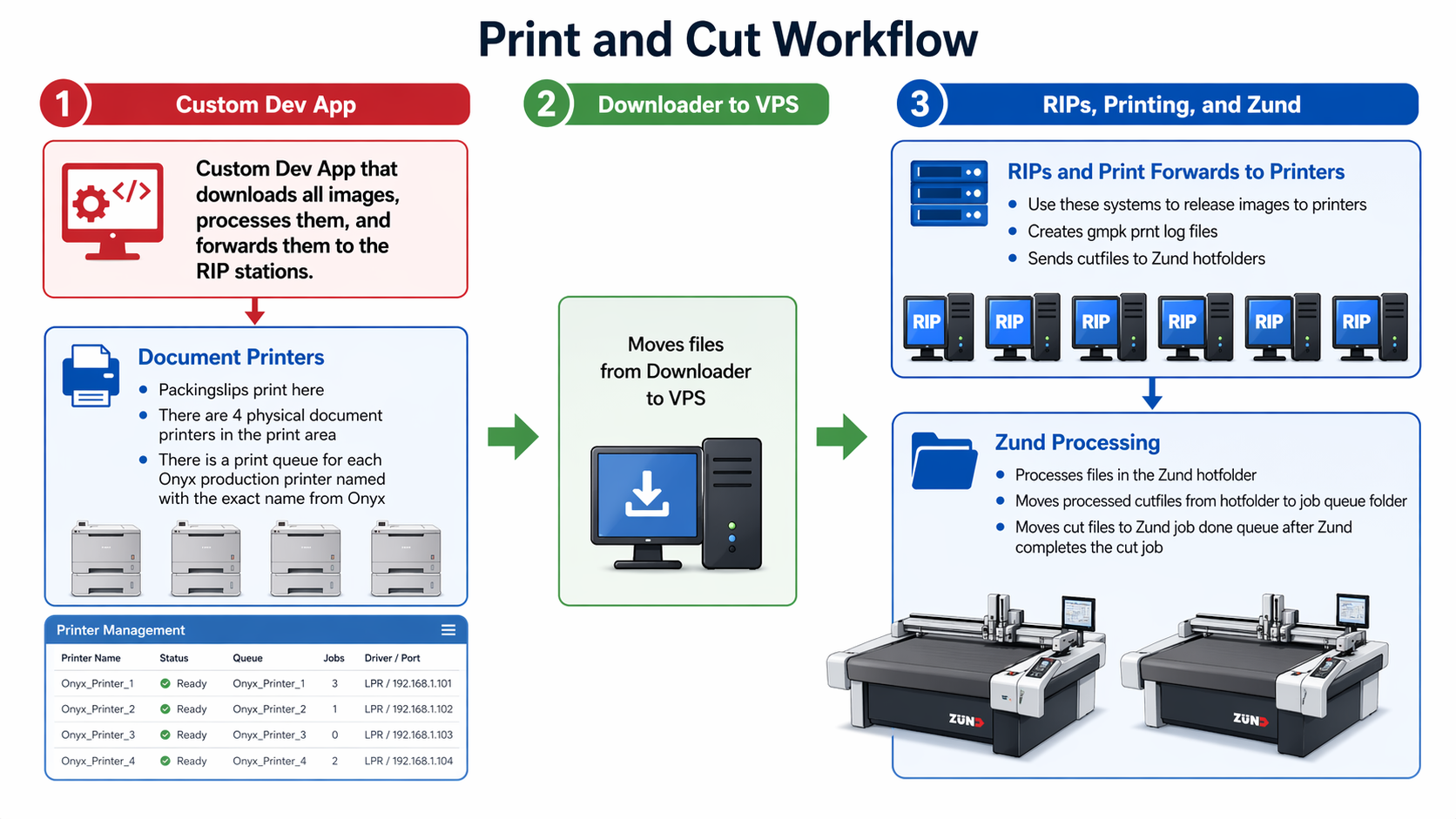

MFA print and cut workflow automation — MFA print & cut workflow — downloaders, RIP stations, packing slips and Zund cut‑queue integration.

Harbor clinic standard network layout — Harbor clinic standard — clinic network zones, camera map and connectivity touchpoints.

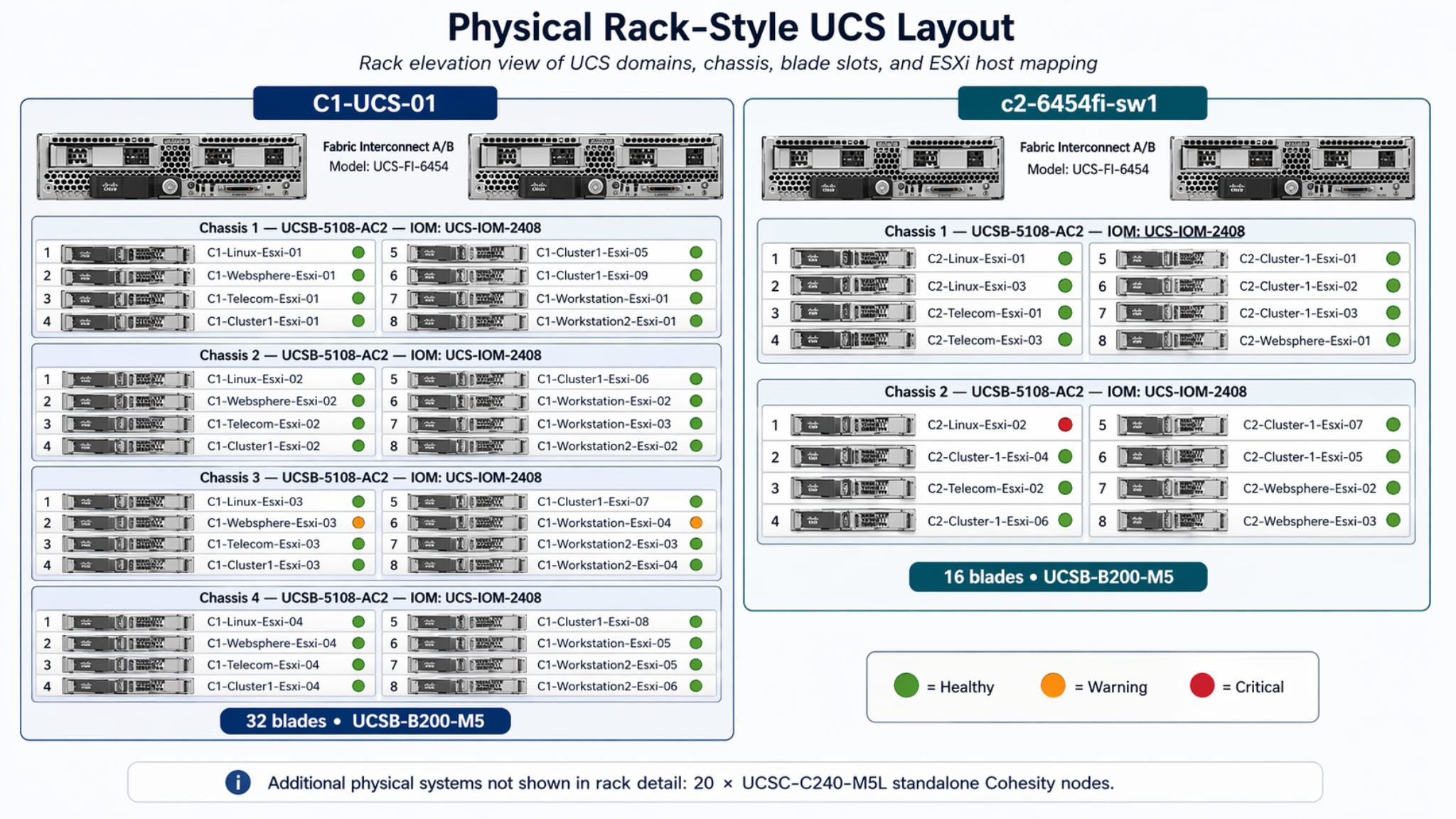

Rack‑style UCS layout with two domains and blade mapping — Rack‑style UCS layout — two domains (C1 and C2) with blade slots mapped to ESXi hosts and workload roles.

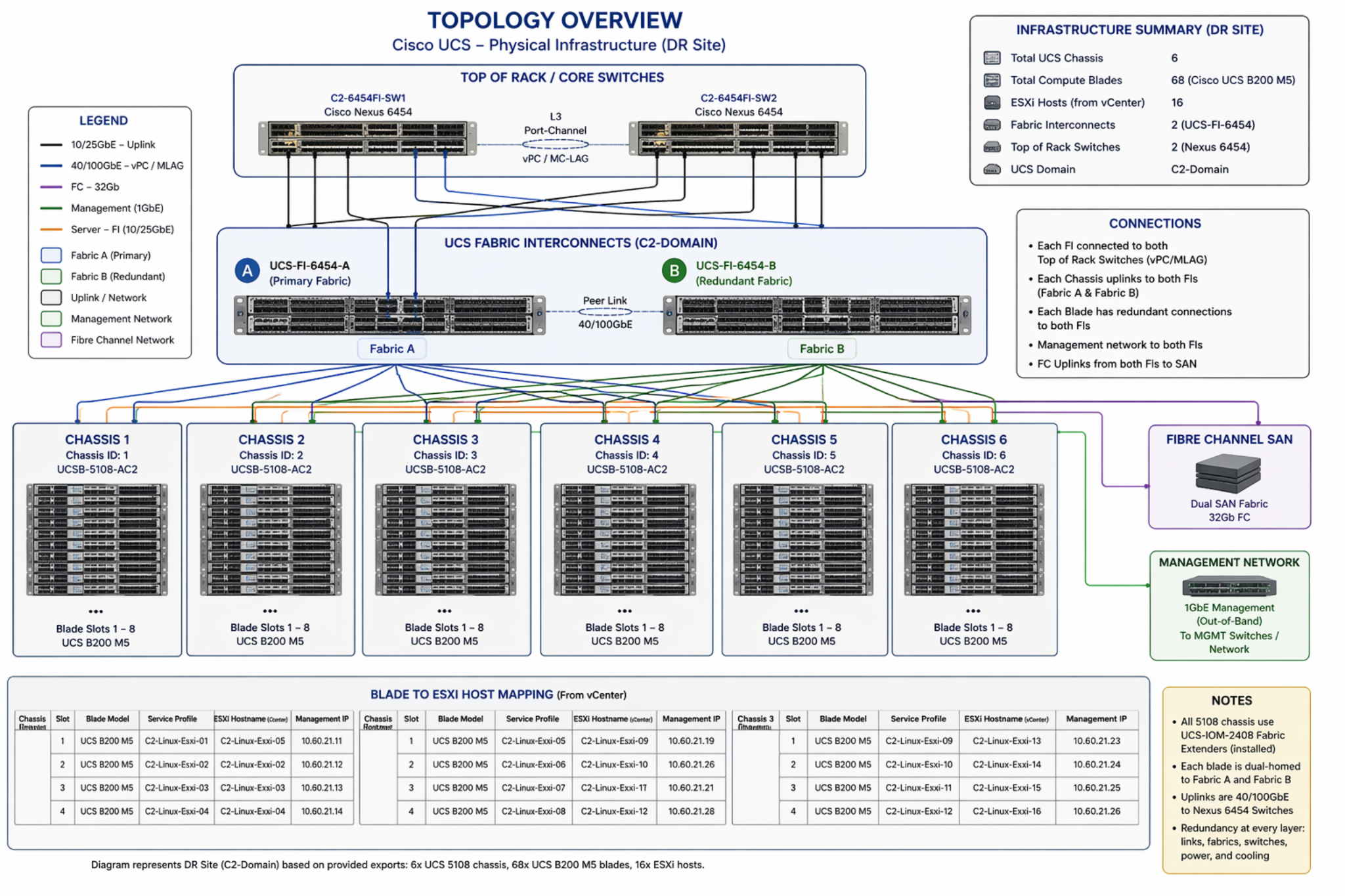

Cisco UCS physical topology and connectivity overview — Cisco UCS topology overview — physical core switches, fabric interconnects, chassis groups and ESXi host allocations.

Network topologies

Meraki infrastructure examples

The following diagrams illustrate real-world network topologies using Cisco Meraki gear. These visuals have been recolored to align with the site’s dark theme while preserving their technical clarity.

Improved Meraki topology for Armadillo Hotel Group — Armadillo Hotel Group Meraki topology — hotel network layout across buildings with cloud-managed switches, access points, gateways and capacity planning for 1/3 building utilization.

Improved Meraki topology for Kendra Scott — Kendra Scott network overview — retail HQ and e‑commerce lane topology with core switching, distribution and cloud-managed Wi‑Fi for multi‑location operations.
