Enterprise Architecture Portfolio

Enterprise Infrastructure & Network Architecture

A showcase of multi-site datacenter environments, healthcare clinic rollouts, virtualization platforms, print and manufacturing automation, hybrid support models, and enterprise platform designs I architected, implemented, and documented. These diagrams reflect real-world environments spanning site-to-site connectivity, virtualized workloads, workflow orchestration, access control, storage, and operational support models.

What this page highlights

These environments demonstrate the kind of architecture work I have led across enterprise and operational technology settings: core routing and firewall design, virtualization and storage, workflow-driven production systems, clinic site standards, and migration-ready hybrid support models.

Multi-siteDatacenter and branch-connected environments
VirtualizedServer, storage, and application platforms
Workflow-drivenAutomation pipelines for manufacturing and print
DocumentedOperational diagrams built for support and scale
Current Role

Texas Mutual Insurance — Senior Systems Engineer

My current work includes enterprise infrastructure engineering, VMware platform support, Cisco UCS and datacenter architecture analysis, storage and compute mapping, and documenting production-ready topology views for support, recovery, and modernization efforts.

VMware Cisco UCS Enterprise Storage Recovery Architecture Platform Engineering Operational Documentation

Featured environments

A curated set of enterprise infrastructure designs pulled from documented environments and presented as a portfolio gallery.

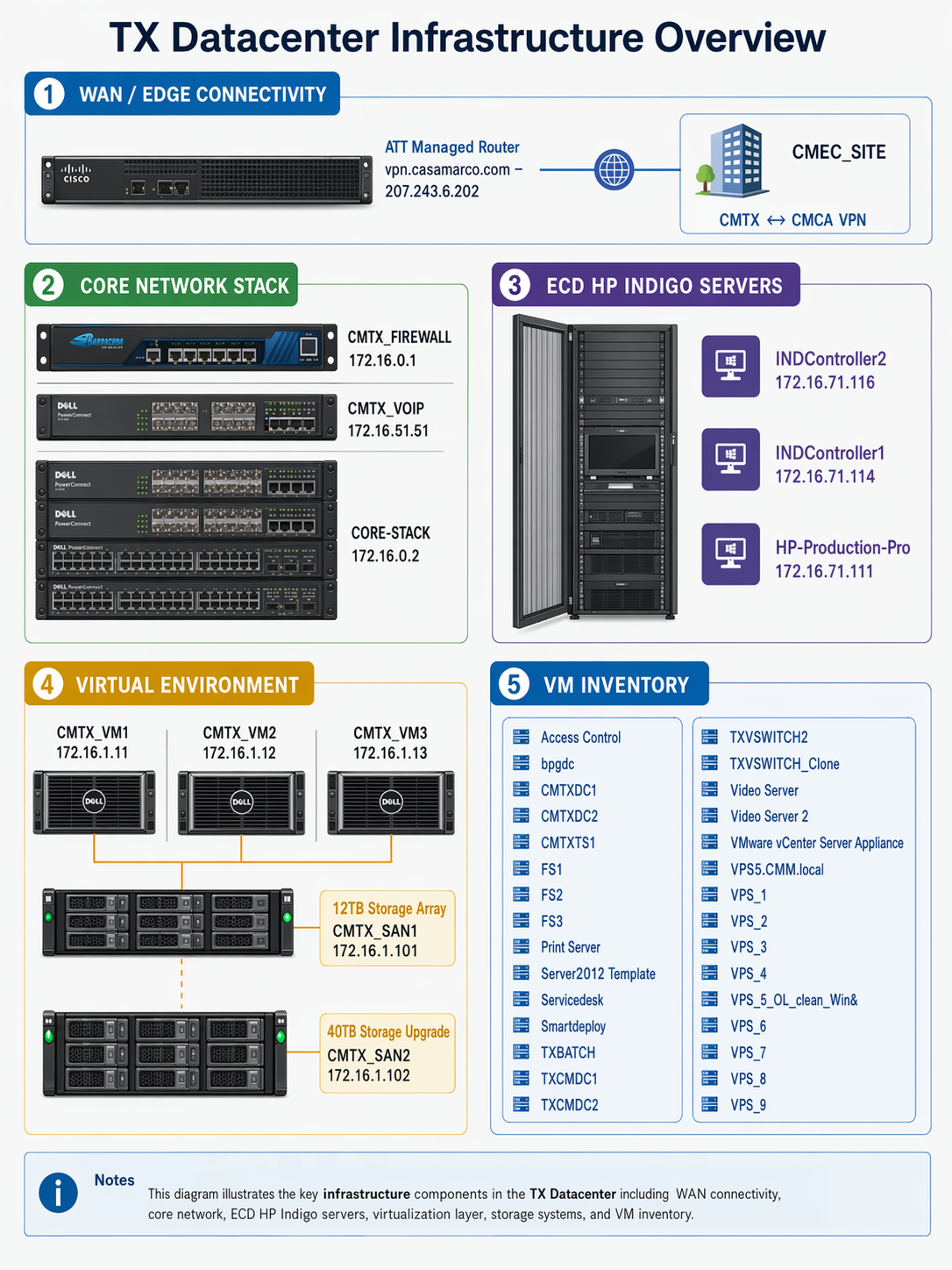

TX datacenter and virtual environment architecture diagram
Datacenter / Virtualization

TX Datacenter & Virtual Environment

Core-stack, managed router, firewall, VoIP, HP Indigo systems, and virtual infrastructure documented together in a single reference view.

  • Core network, perimeter, and voice segmentation
  • Virtual host and storage layout with expansion path
  • Production system integration with HP Indigo controllers

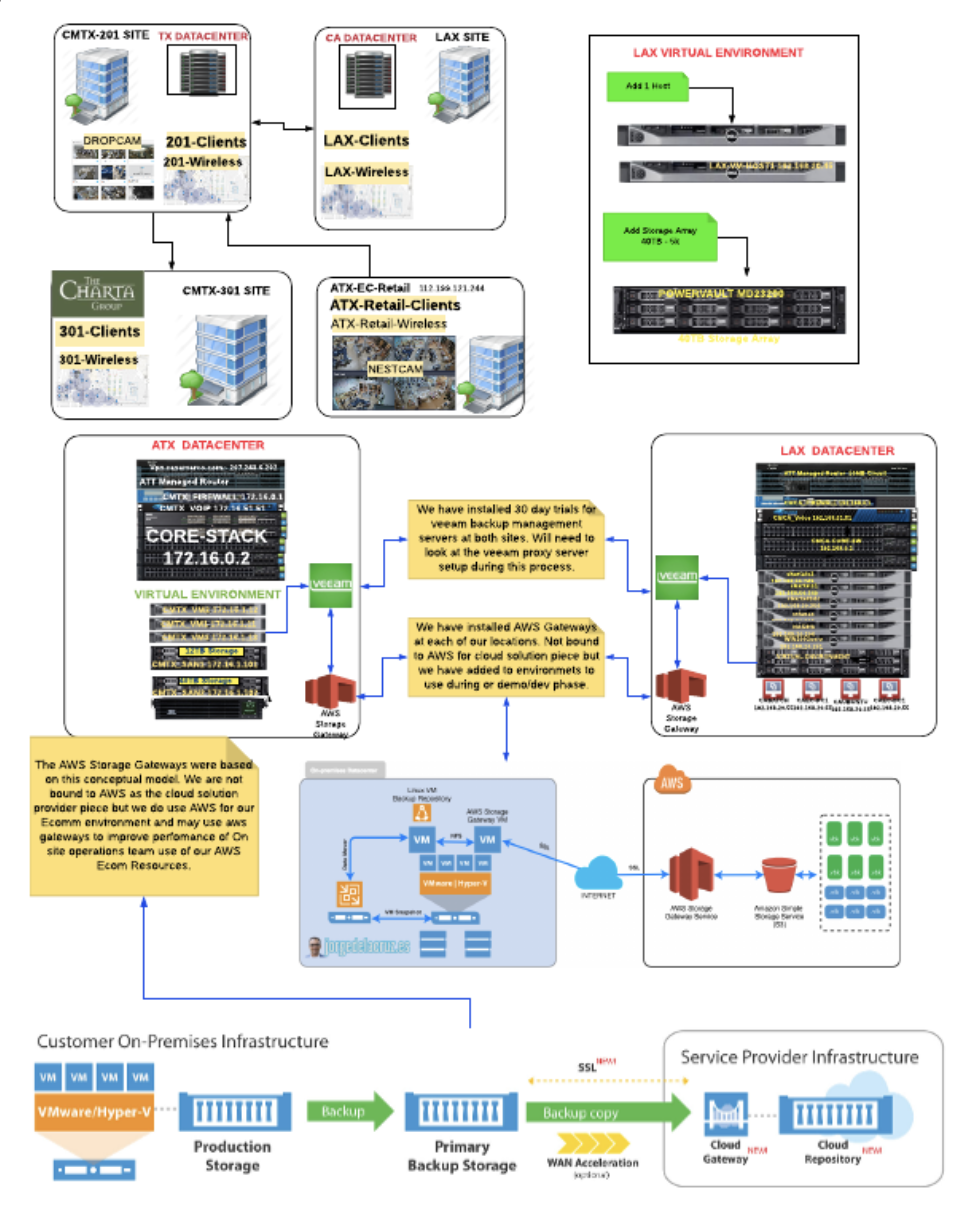

CMTX multisite enterprise and datacenter overview diagram
Multi-Site Enterprise

TX / CA / LAX Site Architecture

Connected site model showing regional sites, datacenters, and retail or branch presence.

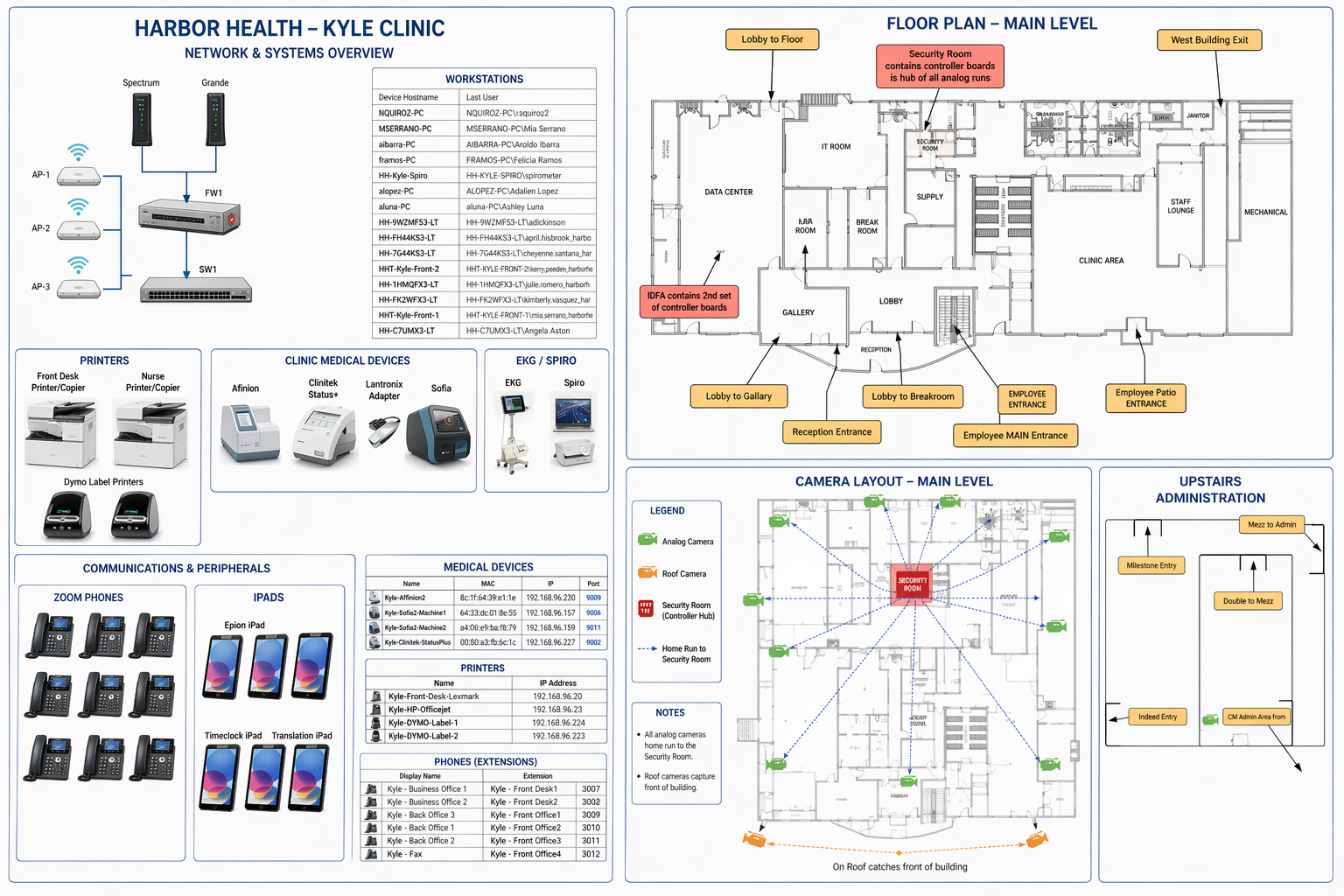

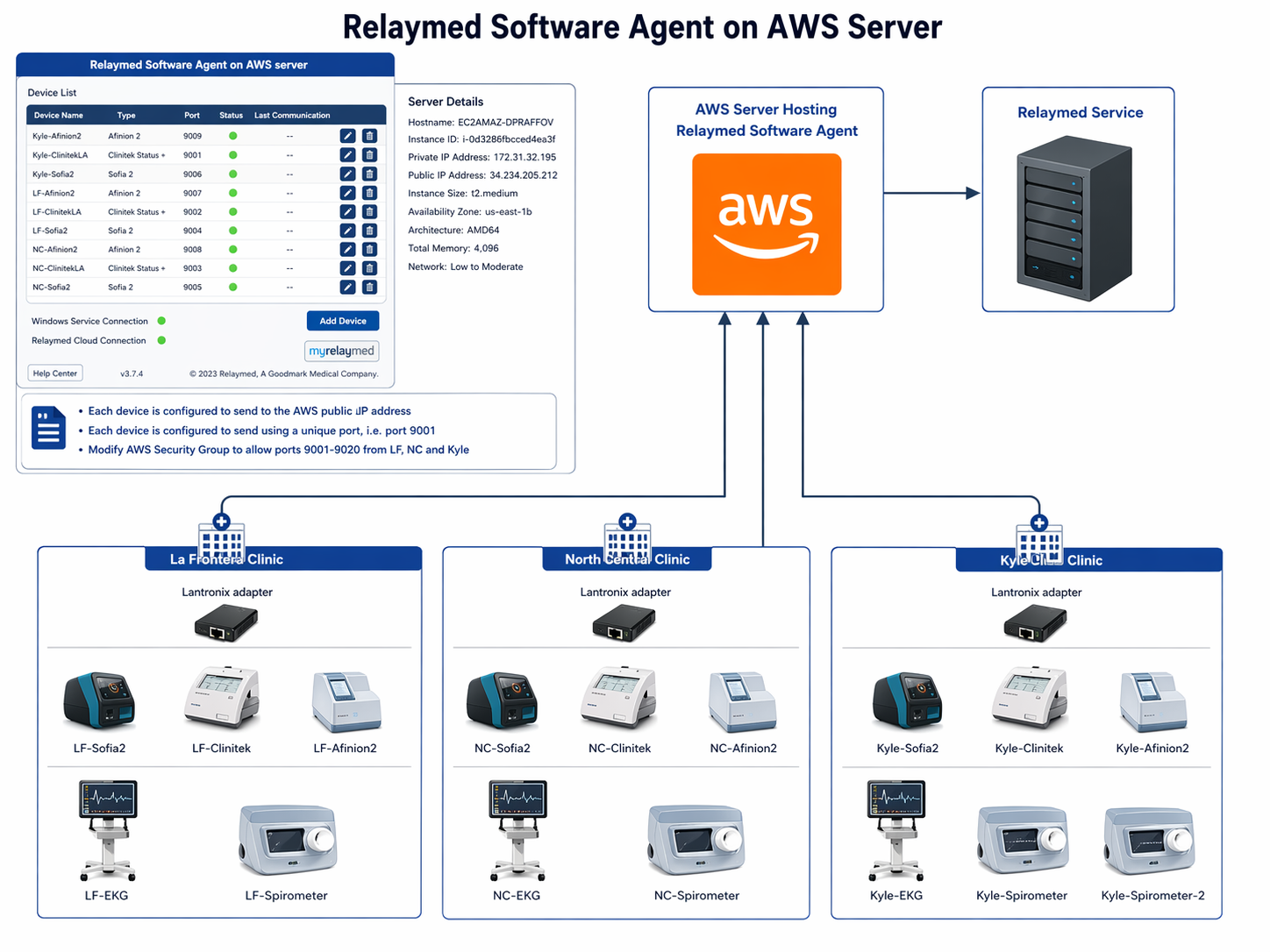

Harbor Health multi-site clinic footprint diagram
Healthcare Infrastructure

Harbor Health Multi-Clinic Footprint

Standardized site topology across clinics, call center, HQ, and mobile units.

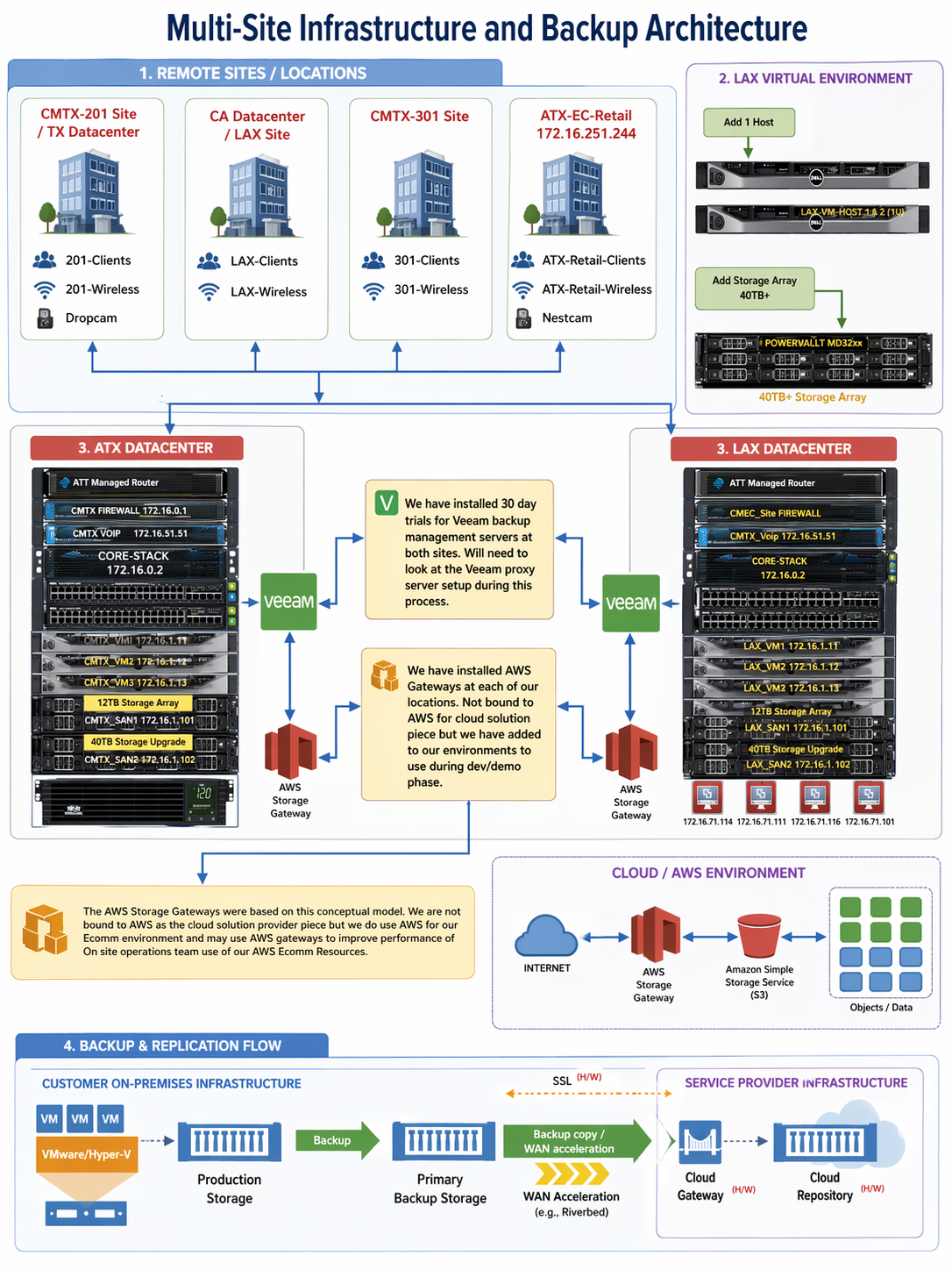

Support and hybrid cloud migration infrastructure diagram
Hybrid Support / Migration

Support & Migration Reference

Environment mapping across on-prem, virtual environments, backup flows, and cloud gateway patterns.

Texas Mutual enterprise infrastructure views

These diagrams represent enterprise platform documentation aligned to my current work as a Senior Systems Engineer at Texas Mutual Insurance, including UCS compute layout, fabric interconnects, switching, and storage relationships across the environment.

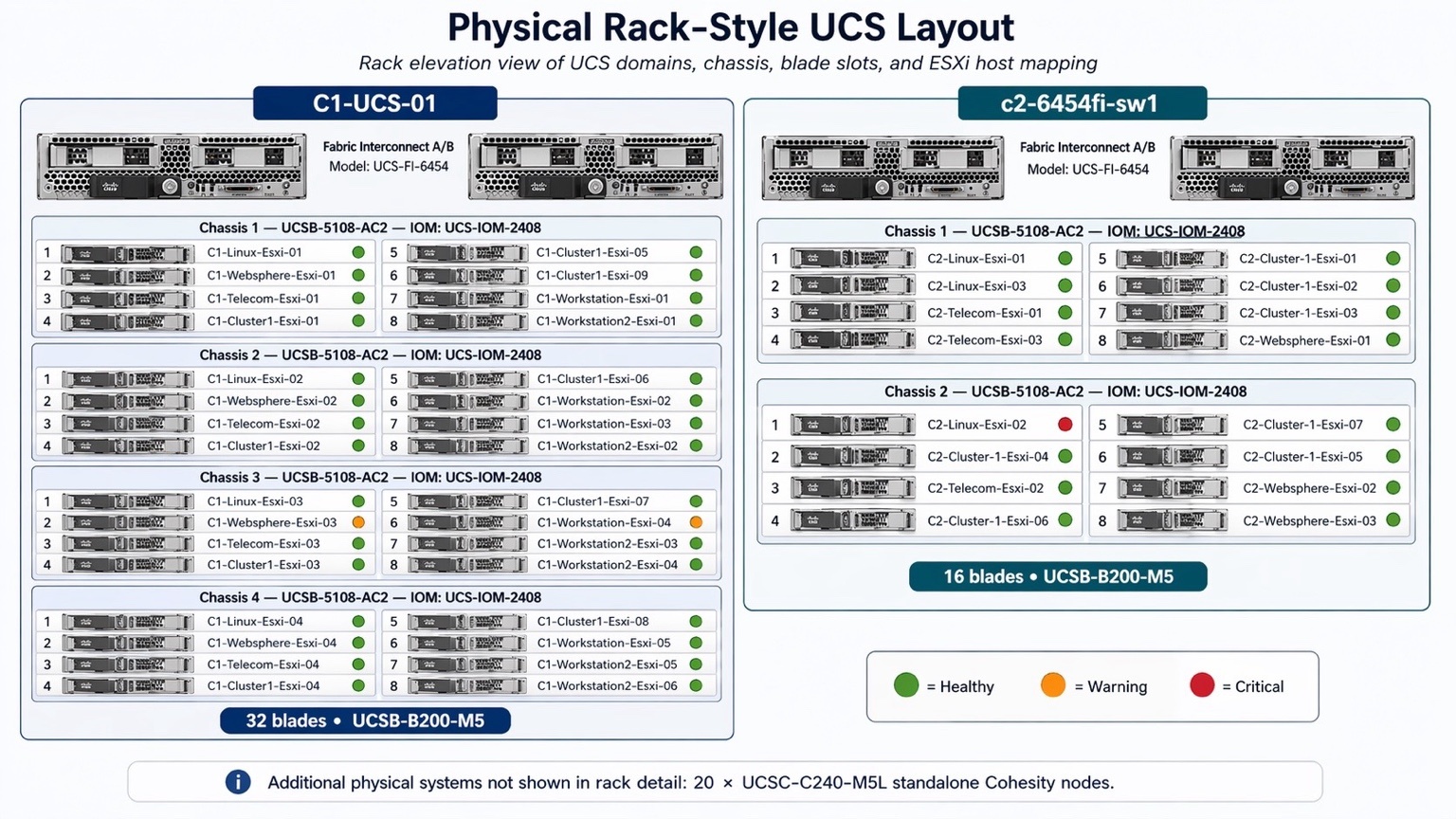

Physical rack-style UCS layout showing UCS domains, chassis, blade slots, and ESXi host mapping
Texas Mutual / Cisco UCS

Physical Rack-Style UCS Layout

Rack-elevation style view of Cisco UCS domains showing chassis layout, blade slot population, ESXi host placement, and health status across production and recovery-side infrastructure.

  • Maps blades to UCS chassis and slots
  • Shows production and DR domain layout side by side
  • Useful for platform support, recovery planning, and lifecycle visibility

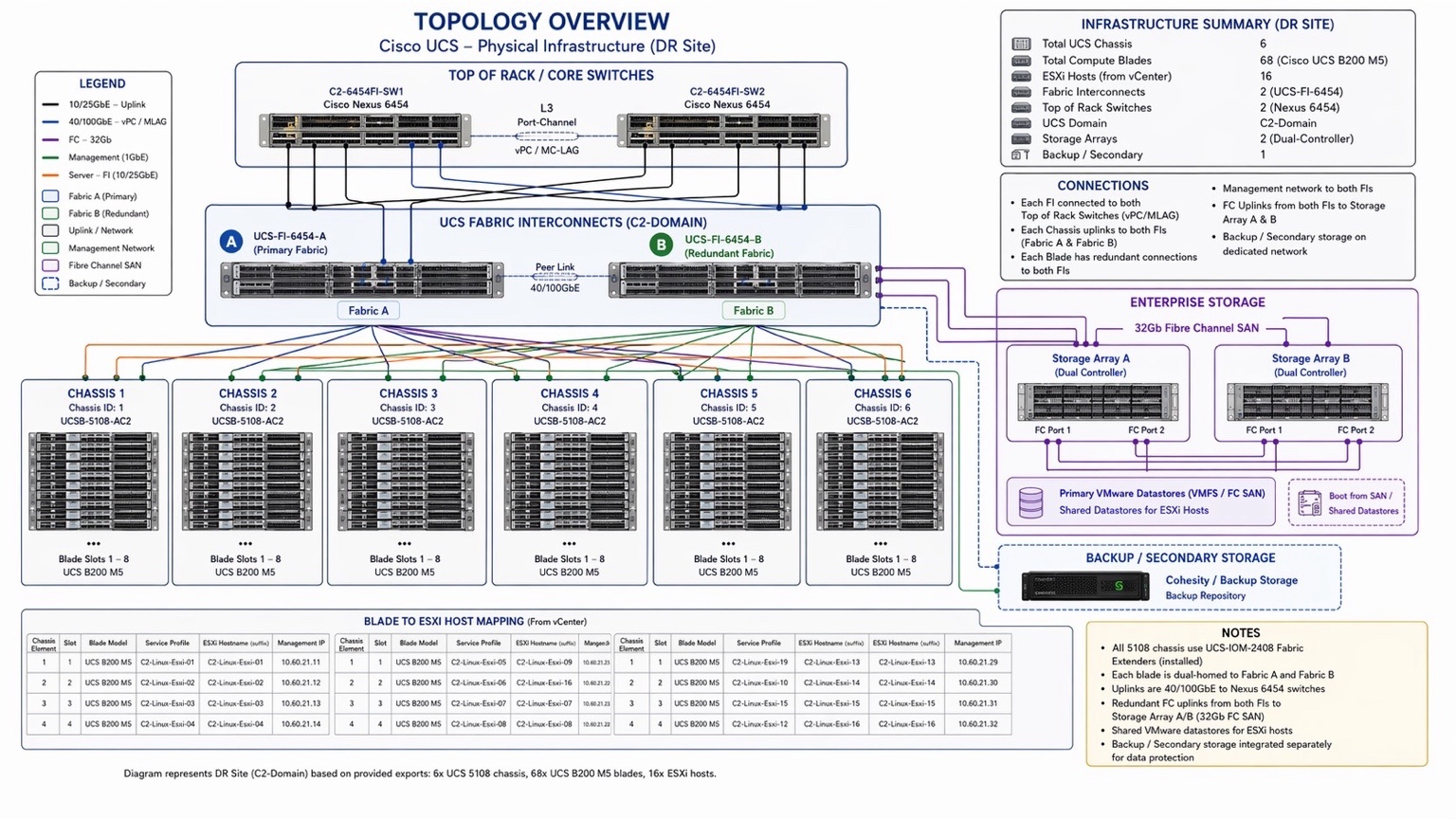

Cisco UCS DR topology overview including switches, fabric interconnects, chassis, storage, and backup
Texas Mutual / Topology & Storage

Cisco UCS Topology Overview

Topology view of the DR-side Cisco UCS environment including top-of-rack switching, fabric interconnects, chassis connectivity, enterprise storage, and backup or secondary storage integration.

  • Shows network, compute, storage, and backup relationships
  • Documents fabric redundancy and SAN connectivity
  • Supports operational understanding and architecture communication

Architecture themes across these environments

Infrastructure patterns I repeatedly put in place

Datacenter core design Site-to-site connectivity Virtualization & storage Workflow automation Operational documentation Device and endpoint standardization Production / OT integration Migration readiness Cisco UCS architecture Recovery topology

The common thread across these projects is translating complex operational requirements into stable, supportable architecture. That includes designing not just the network or compute layer, but also the surrounding workflows, handoffs, dependencies, and documentation that allow teams to run the environment day to day.

Best-fit roles

  • Senior Infrastructure Engineer
  • Network / Systems Architect
  • Platform & Virtualization Engineer
  • Technical Operations Architect
  • Enterprise Systems Engineer

Detailed environment gallery

A larger visual gallery for architecture review, portfolio sharing, and interview walkthroughs.

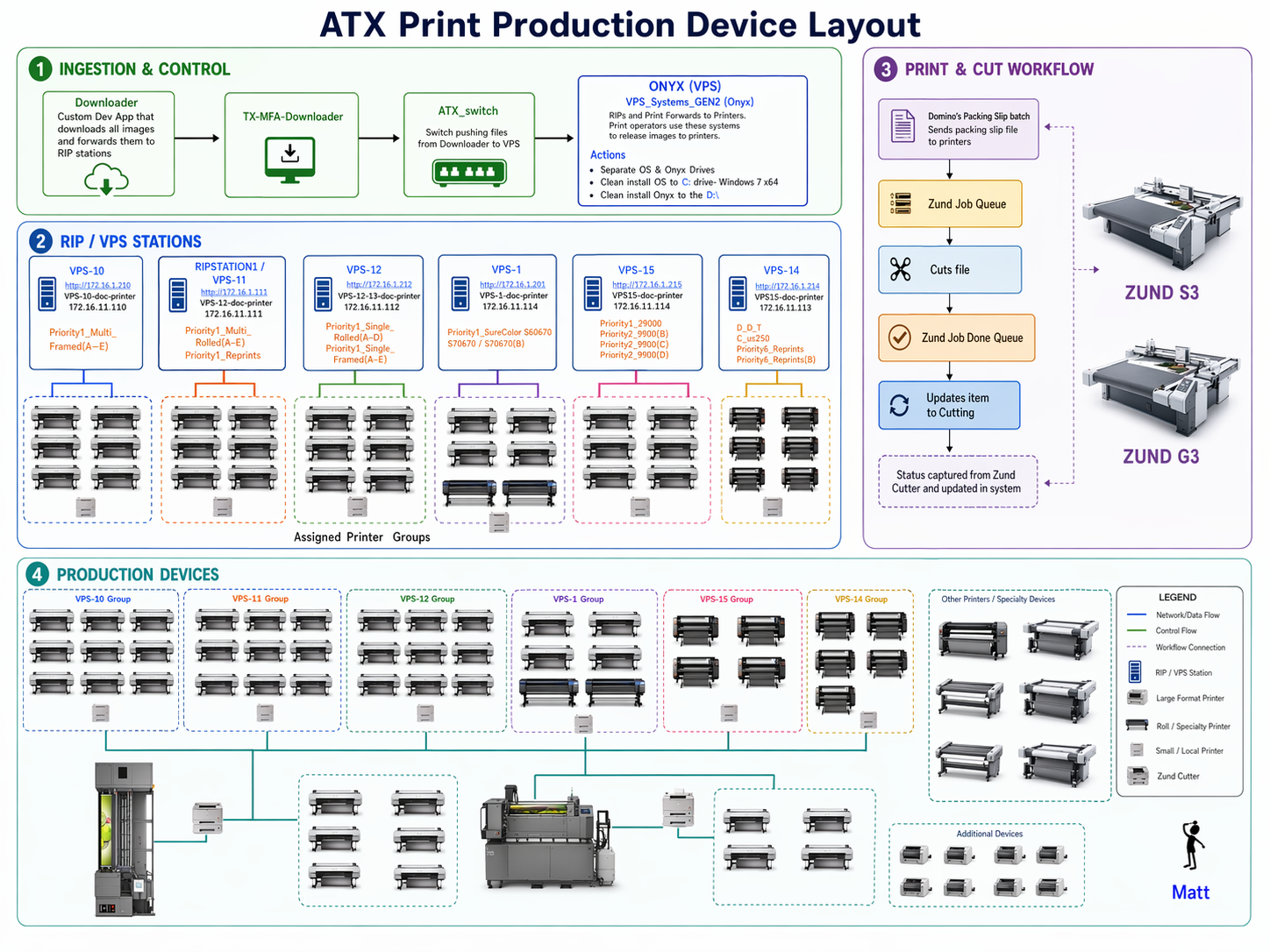

EC cross-site workflow architecture diagram
Cross-Site Workflow Architecture

TX + CA Production Workflow Design

Cross-site workflow architecture showing designers, batch processing, core switching, Indigo systems, shared resources, and scripted distribution of incoming workloads between Texas and California production environments.

Harbor Health clinic standard device and network diagram
Clinic Standardization

Clinic Blueprint: Network, Printers, Phones, Medical Devices

Repeatable clinic design pattern including firewall, switch, APs, printers, iPads, phones, and connected medical devices.

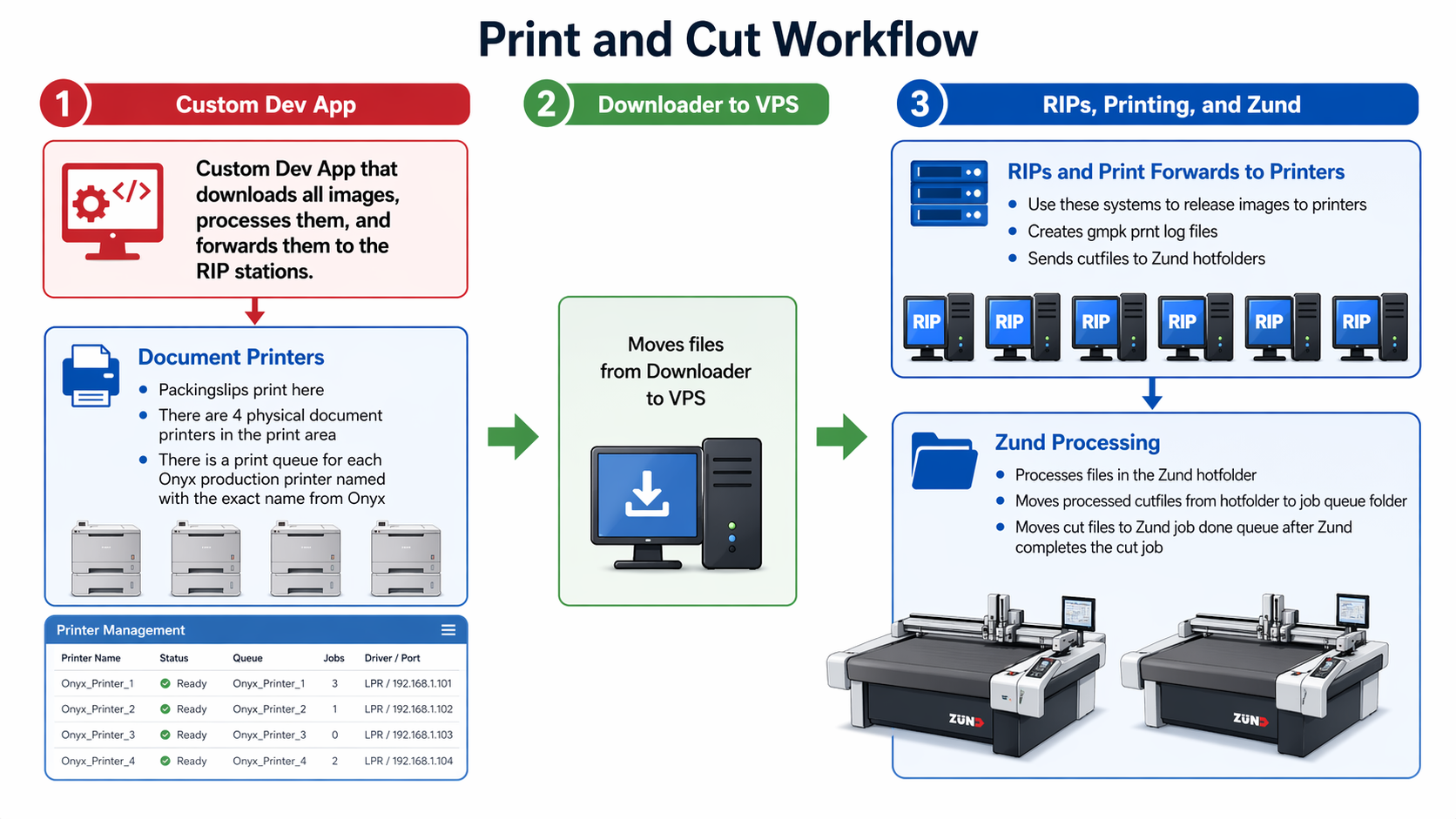

MFA print environment workflow and Onyx VPS pipeline diagram
Workflow Automation / Print Ops

MFA Print Environment & Onyx VPS Pipeline

End-to-end workflow covering downloaders, RIP stations, print forwarding, packing slip generation, and downstream cutting systems.

  • Custom downloader processing and file distribution
  • Onyx-based release and forwarding model
  • Zund cut queue integration and packaging workflows

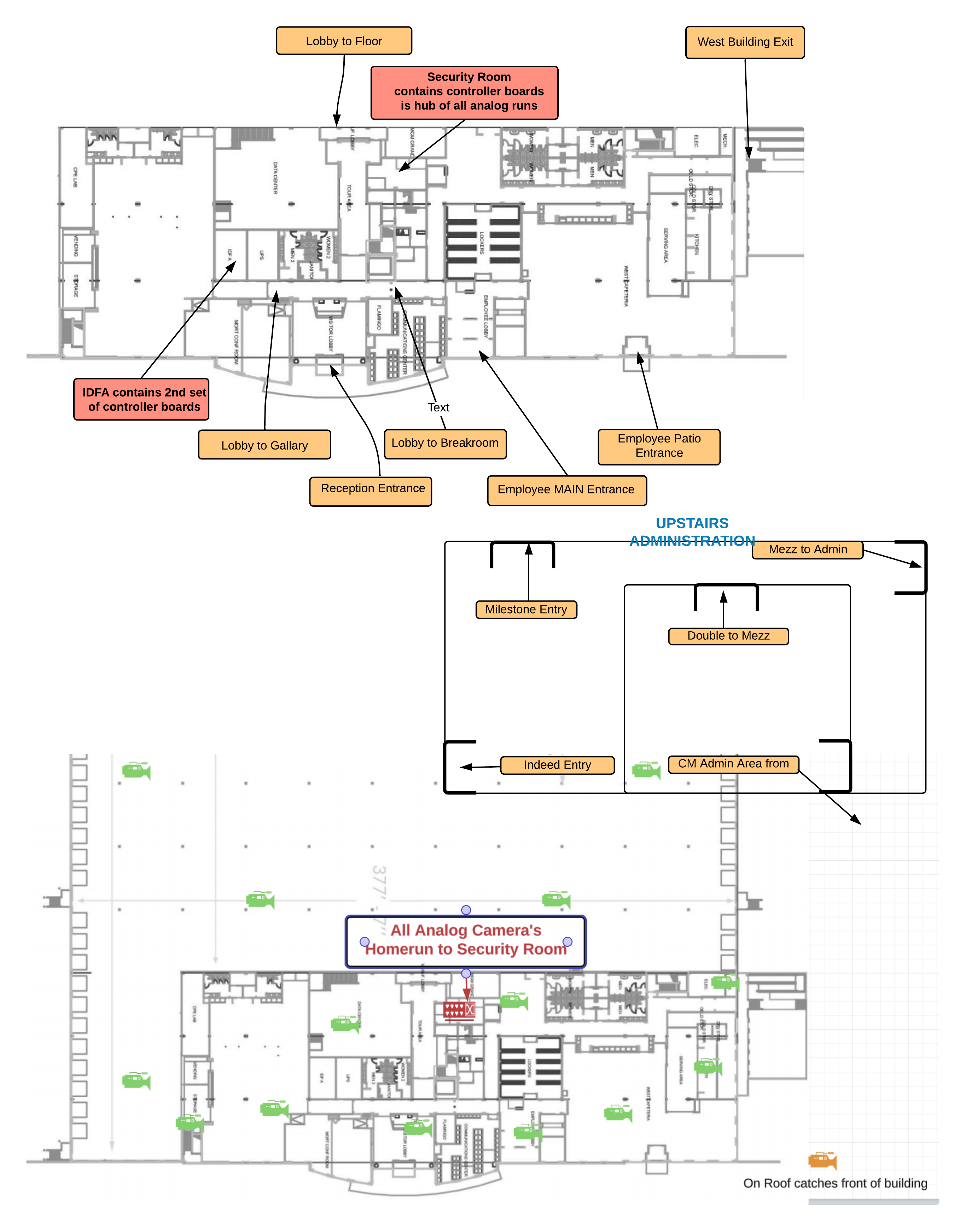

Access control and entry controller board layout diagram
Physical Security / Access Control

Facility Access Control Layout

Documented entry points, control board hubs, readers, and locking mechanisms to support secure operations and support handoff.
